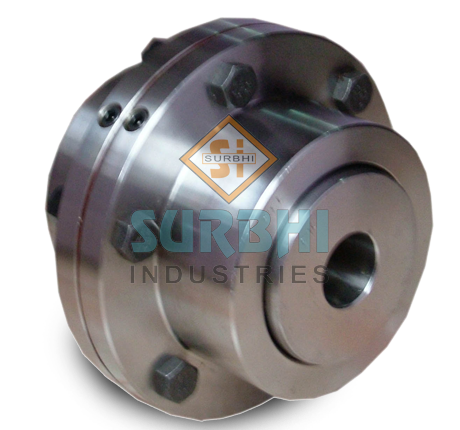

Flexible Gear Coupling
About Product
SURBHI INDUSTIRES GEAR COUPLINGS are distinguised by their MECHANICAL FLEXIBILITY and compensation of MISALIGNMENT of the connected shafts automatically without any loss of transmitted power during running. These coupling ensure greater flexibility because of their well designed tooth formation generated by INVOLUTE system to ensure uniform toothe PROFILE AND PITCH.
Surbhi Industries is a pioneer in Gear coupling manufacturing . We offer a wide range of flexible and semi flexible gear coupling products that serve our clients in industries like Plastic, Textile, Paper, Oil, Cement,sugar,rolling,fertilizer and many more. We are one of the esteemed Flexible geared couplings of manufacturers India.
The entire ranges of flexible gear coupling that we manufacture are extremely rigid owing to the designed teeth formation. We manufacture highly efficient fully flexible and semi flexible gear coupling or rigid couplings that ensure precise integration of shafts negating any additional pressure due to misalignment. Surbhi Industries uses high strength steel to manufacture each of these products and thus offers highly durable and long lasting machinery to all its clients.
As noted Gear coupling manufacturers of India , we offer high quality products that stand out for its precision and endurance. Our flexible gear couplings inhibit very low level of backlash, offer high power density and are extremely sturdy due to the unique teeth design. Our products require low maintenance and are priced economically to ensure that our customers enjoy superior products within their budget. That is makes us a choice name among Gear coupling Exporters in India.
Lubrication
The coupling must be fitted with grease or oil. It is recommended to use grease where the maximum temperature is within 80oC & for temperature above 80o C oil should be use.
Technical Specification

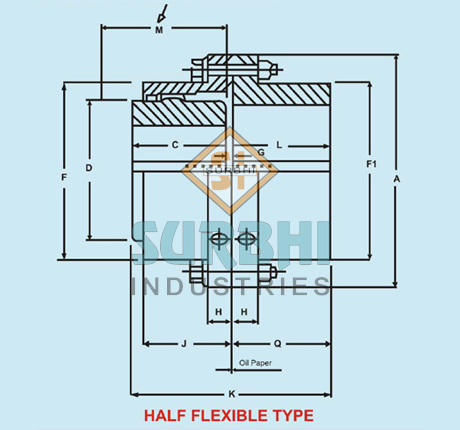

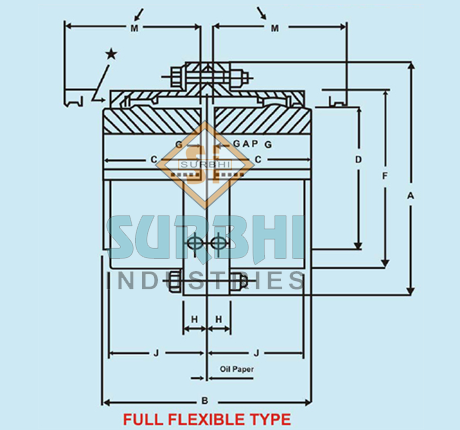

| COMMON FOR BOTH COUPLING | FULL FLEXIBLE TYPE | HALF FLEXIBLE TYPE | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Coupling NO. | H.P. Capacity AT 100 R.P.M. | Max. TORQUE Kg. M. | Max R.P.M. | Bore Min. | A | C | D | F | M | G | H | Bore MAX. | J | B | WR² Kgm² | Wt. In Kg | K | Q | Bore Max. | F1 | WR² Kgm² | Wt. in Kg | ||||||
| 100 | 7 | 50 | 8000 | 10 | 120 | 45 | 50 | 75 | 55 | 1.5 | 15 | 30 | 39.5 | 93 | 0.03 | 4 | 93 | 46.5 | 50 | 70 | 0.03 | 4 | ||||||
| 101 | 14 | 100 | 6300 | 20 | 170 | 55 | 65 | 110 | 65 | 2.5 | 17 | 40 | 49 | 115 | 0.14 | 10 | 115 | 57.5 | 60 | 85 | 0.15 | 10 | ||||||
| 102 | 35 | 250 | 5000 | 30 | 185 | 70 | 85 | 125 | 80 | 2.5 | 17 | 55 | 62 | 145 | 0.20 | 15 | 145 | 72.5 | 75 | 110 | 0.24 | 15 | ||||||
| 103 | 63 | 450 | 4000 | 40 | 220 | 85 | 105 | 150 | 105 | 2.5 | 20 | 70 | 78 | 175 | 0.48 | 25 | 175 | 87.5 | 90 | 130 | 0.51 | 25 | ||||||
| 104 | 119 | 850 | 3350 | 50 | 250 | 105 | 130 | 175 | 125 | 2.5 | 20 | 85 | 96 | 215 | 0.95 | 39 | 215 | 107.5 | 110 | 160 | 1.0 | 40 | ||||||
| 105 | 182 | 1300 | 2800 | 60 | 290 | 110 | 155 | 200 | 140 | 5 | 25 | 105 | 106 | 230 | 1.90 | 59 | 230 | 115 | 130 | 185 | 2.0 | 60 | ||||||
| 106 | 280 | 2000 | 2500 | 75 | 320 | 125 | 175 | 230 | 155 | 5 | 25 | 120 | 117 | 260 | 3.00 | 85 | 260 | 130 | 150 | 215 | 3.3 | 85 | ||||||
| 107 | 490 | 3500 | 2100 | 90 | 350 | 140 | 205 | 260 | 175 | 5 | 25 | 130 | 134 | 290 | 5.25 | 103 | 290 | 145 | 170 | 240 | 5.8 | 106 | ||||||
| 108 | 630 | 4500 | 1900 | 105 | 380 | 155 | 230 | 290 | 190 | 5 | 25 | 150 | 147 | 320 | 8.50 | 138 | 320 | 160 | 200 | 285 | 9.5 | 149 | ||||||
| 109 | 784 | 5600 | 1700 | 125 | 430 | 165 | 250 | 330 | 205 | 5 | 25 | 170 | 156 | 340 | 15.00 | 210 | 340 | 170 | 220 | 315 | 16.8 | 200 | ||||||
| 110 | 1148 | 8200 | 1400 | 140 | 490 | 180 | 310 | 390 | 220 | 5 | 25 | 210 | 171 | 370 | 30.50 | 277 | 370 | 185 | 260 | 370 | 35.0 | 274 | ||||||
| 111 | 1536 | 11000 | 1250 | 160 | 545 | 200 | 350 | 445 | 240 | 5 | 30 | 260 | 192 | 410 | 58 | 550 |
| |||||||||||
| 112 | 2053 | 14700 | 1120 | 180 | 590 | 240 | 400 | 490 | 280 | 5 | 30 | 300 | 231 | 490 | 88 | 710 | ||||||||||||
| 113 | 2793 | 20000 | 1000 | 200 | 680 | 260 | 440 | 555 | 310 | 7.5 | 35 | 330 | 242 | 535 | 138 | 980 | ||||||||||||
| 114 | 3994 | 28600 | 900 | 220 | 730 | 280 | 500 | 610 | 330 | 7.5 | 35 | 370 | 266 | 575 | 291 | 1320 | ||||||||||||
| 116 | 8378 | 60000 | 710 | 300 | 900 | 350 | 625 | 755 | 425 | 10.0 | 45 | 455 | 335 | 720 | 680 | 2550 | ||||||||||||
| 117 | 11917 | 83550 | 630 | 375 | 1000 | 400 | 720 | 855 | 460 | 10.0 | 45 | 520 | 386 | 820 | 1235 | 3620 | ||||||||||||
| 118 | 15778 | 113000 | 560 | 450 | 1100 | 450 | 810 | 950 | 510 | 10.0 | 55 | 610 | 430 | 920 | 1965 | 4860 | ||||||||||||
| 119 | 20805 | 149000 | 500 | 520 | 1250 | 485 | 910 | 1050 | 560 | 15.0 | 55 | 710 | 446 | 1000 | 3012 | 6380 | ||||||||||||
